Repair clamp 2 part St.St. 304/Viton PN10/16 length 200mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

download datasheet

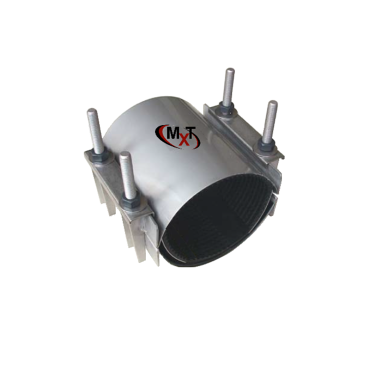

Repair clamp 2 part St.St. 304/Viton PN10/16 length 200mm

Model:	Repair clamp	Material body:	Stainless steel 304
Connection:	Clamping	Material gasket:	Viton
Pressure:	10/16 bars see PDF
Temperature:	+200°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	2MS21V0000
Body material	Stainless-Steel 304
Seat	FKM-FPM-Viton

Grouped product items
SKU	Product Name	Length	Ø D	€ / st	Qty
2MS21V0008	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 88-110	200	88-110	€1,599.05	- +
2MS21V0009	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 108-128	200	108-128	€1,625.07	- +
2MS21V0010	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 112-134	200	112-134	€1,646.04	- +
2MS21V0011	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 120-140	200	120-140	€1,690.59	- +
2MS21V0012	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 133-155	200	133-155	€1,735.32	- +
2MS21V0013	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 138-160	200	138-160	€1,758.74	- +
2MS21V0014	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 158-180	200	158-180	€1,995.82	- +
2MS21V0015	Repair clamp 2 part St.St. 304/Viton PN16 length 200mm Ø 168-190	200	168-190	€2,073.57	- +
2MS21V0016	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 190-210	200	190-210	€2,108.87	- +
2MS21V0017	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 195-217	200	195-217	€2,176.84	- +
2MS21V0018	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 210-230	200	210-230	€2,176.84	- +
2MS21V0019	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 216-238	200	216-238	€2,254.25	- +
2MS21V0020	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 225-246	200	225-246	€2,301.42	- +
2MS21V0021	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 238-260	200	238-260	€2,301.42	- +
2MS21V0022	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 251-271	200	251-271	€2,355.40	- +
2MS21V0023	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 273-293	200	273-293	€2,500.76	- +
2MS21V0024	Repair clamp 2 part St.St. 304/Viton PN10 length 200mm Ø 295-315	200	295-315	€2,522.26	- +
