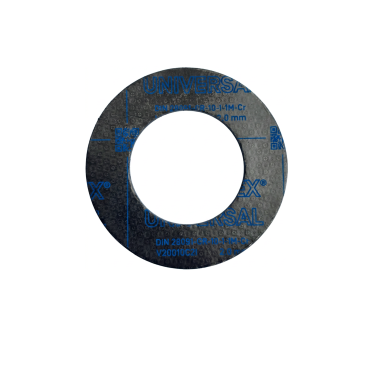

SIGRAFLEX ®UNIVERSAL Graphite ring gasket high temperature PN10/16 Type:V15010C2l
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
SIGRAFLEX ®
STEAM
Graphite gasket seal with stainless steel reinforced
GRAPHITE
DIN
| Model: | SIGRAFLEX Ring type gasket | Material: | Graphite foils |
| Connection: | Ring model flanges DIN | Material inside: | Stainless steel reinforcement |
| Pressure: | -1 tot 100 bar | Brand: | SIGRAFLEX ®UNIVERSAL |
| Temperature: | -250 up to +450 °C check datasheet | Model nr: | V15010C2l |
| Approval: | Fire safe according to BS 6755-2 | ||
| Blow-out safety HOBT (ASTM WK26064) | |||
| BAM oxygen | |||
| DVGW (DIN 3535-6) | |||
Datasheet (PDF)
| SKU | SIGRAFLEXUN2000 |
|---|
| Material gaskets | Graphite |
|---|
