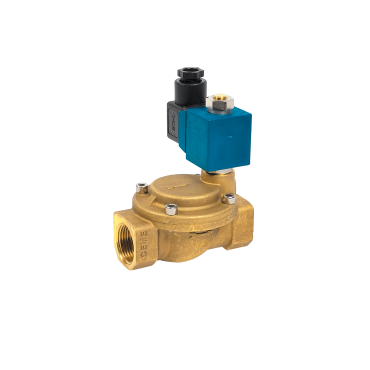

Solenoid valve ESM 86 Brass-EPDM NC (normally closed) 24Volt-AC (50Hz) BSPP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
EPDM
Normaly-closed
| Model: | Servo assisted 2/2 | Material body: | Brass CW 617 N |
| Connection: | Thread BSPP ISO 228 | Material diaphragm: | EPDM |
| Voltage: | 24 Volt AC 50Hz | Material pilot: | PBT+30% G.F. |
| Operating pressure: | 0 - 10 bar | Setting | NC normally closed |
| Temperature range: | -5°C to +110°C | Protection: | IP 65 |
| Brand: | CEME | Frequency: | 50 Herz (Hz) |
| Kv (m3/h) | check data sheet | Other info: | check data sheet |
Datasheet (PDF)
| SKU | ESM0861A0 |
|---|
| Body material | Brass-CW617N |
|---|---|
| Seat | EPDM |
