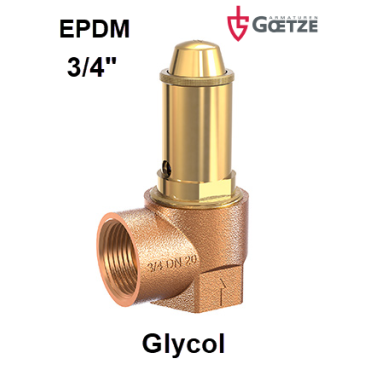

Spring loaded angle safety glycol 100% bronze/EPDM 3/4"
| Model: | Spring loaded angle type | Material body: | Gunmetal Bronze CC499K |
| Connection: | Female thread 3/4" BSPP | Material internal: | Brass CW617N |
| Pressure: | Factory preset | Material spring: | Steel 1.1200 ASTM A228 |
| Temperature: | -10°C tot +130°C | Brand / model: | Goetze / 652 |
| Medium: | Liquids glycol 100%c | Presure reach: | Max 16bar |
| Temperature note: liquid must not evaporate at blow-off. |
| EPDM for cooling circuits up to 100% glycol |
|
Safety valves are set and sealed at the factory and can only be supplied non-adjustable. |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-6520EG2000 |
| Body material | Bronze |
| Seat | EPDM |
