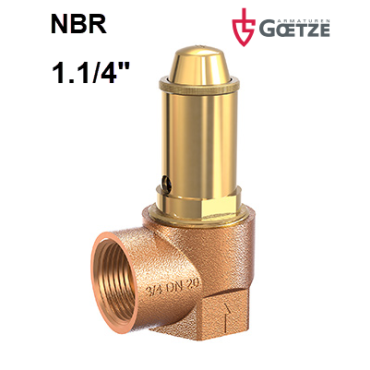

Spring loaded angle safety liquid bronze/NBR 1.1/4"
| Model: | Spring loaded angle type | Material body: | Gunmetal Bronze CC499K |
| Connection: | Female thread 1.1/4" BSPP | Material internal: | Brass CW617N |
| Pressure: | Factory preset | Material spring: | Steel 1.1200 ASTM A228 |
| Temperature: | -10°C tot +130°C | Brand / model: | Goetze / 652 |
| Medium: | Liquids non toxic | Presure reach: | Max 16bar |
| Temperature note: liquid must not evaporate at blow-off. |
| NBR Nitrile rubber (Standard) Elastomere flat seal water and neutral, non-toxic liquids, coolants containing (up to 30% glycol) |
|
Safety valves are set and sealed at the factory and can only be supplied non-adjustable. |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-6520N40000 |
| Body material | Bronze |
| Seat | NBR |
