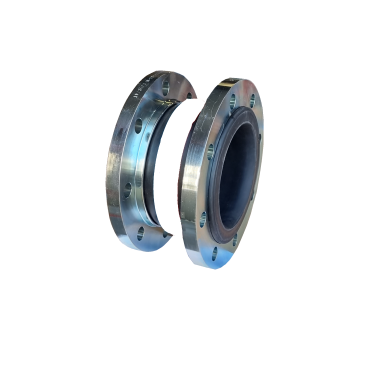

Stenflex compensator Type A-1 flanged galva-steel CIIR-Butyl PN10/16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BUTYL
DIN
| Model: | Bellow compensator | Material flange: | Galvanized steel |
| Connection: | Flanged PN10/16 | Material bellow: | CIIR Butyl |
| Pressure: | 16 bar | Type: | A-1 |
| Temperature: | -10°C / 90°C | Brand: | Stenflex |
| Colour code: | White | Made: | Germany |
Datasheet (PDF)
| SKU | MXT-SFA1B1000 |
|---|
| Disc / Ball / Wedge | Steel zinc. |
|---|---|
| Seat | Rubber |
STENFLEX Rubber expansion joint | A-1
Universal expansion joint DN 20 - DN 1000 · PN 16
Universal expansion joint, consisting of a rubber bellows with rotable flanges.
Synthetic fibre reinforcement.
Applications:
for reducing thermal and mechanical tension in pipes and their system components, e.g.
• pumps
• compressors
• motors
for absorbing vibration and noise
for compensating axial, lateral and angular movement
for compensating simultaneous movement in cooling water pipes
to compensate for installation inaccuracies
