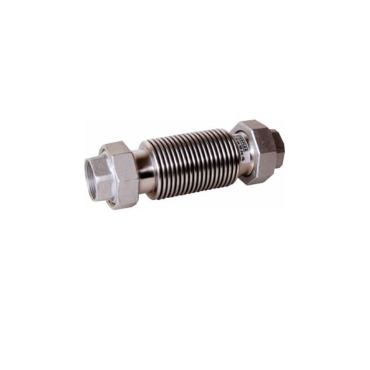

Stenflex Type SG-11 DVGW-GAS bellow St.St 1.4541 union galva-iron PN16 Female thread Rp
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
| Model: | SG-11 thread connection | Material bellow: | Stainless steel 1.4541 |
| Connection: | Female thread ISO 7-1 (DIN 2999) Rp | Material union: | GJMW-400-5 (malleable casting) |
| Pressure: | 16 bar | Surface union: | Electrogalvanized |
| Temperature: | -196°C up to +550°C | Made: | Germany |
| Brand: | Stenflex | Type: | SG-11 DVGW-GAS |
| Certificates: | CE (PED 2014/68/EU) on request | ||
| Certificates: | DVGW (DN 25 -DN 50) on request |
Datasheet (PDF)
| SKU | MXT-SG11DW0000 |
|---|
| Material bellow | Stainless steel |
|---|---|
| Body material | Stainless.steel-1.4541-AISI.321 |
Stenflex SG-11, 15729400, 15729500, 15729600, 15729700
