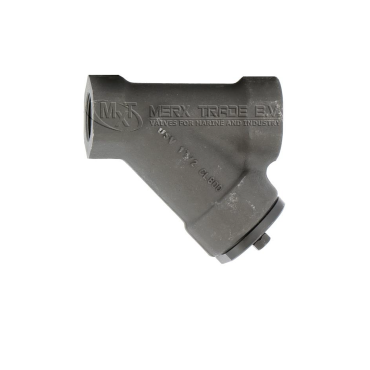

Strainer Y type Carbon steel Thread BSPT-800lbs
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
| Model: | Y type | Material body: | ASTM A105 N |
| Connection: | Thread BSPT | Material filter: | SS ASTM A240 316L |

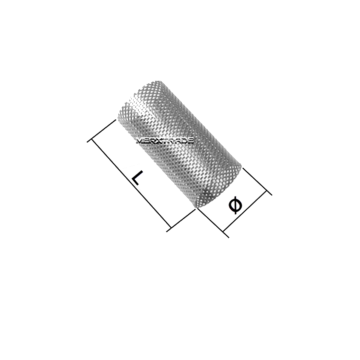

| Size: | 1/4" to 1/2" | Specification: | Changeable filter |
| Min temperature: | - 29°C | Mesh: | 8/10° mm ( 800 µ ) |
| Max temperature: | + 425°C | Max pressure: | 138 bar Class 800lbs |
Datasheet (PDF)
| SKU | MXT-2310018000 |
|---|
| Body material | Carbon.steel-ASTM-A105N |
|---|---|
| Filter material | SS316 |
