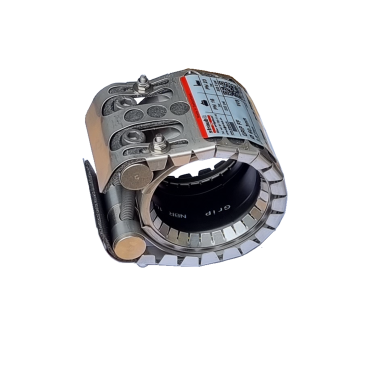

STRAUB GRIP pipe FIRE-FENCE Stainless steel 1.4404-316L FKM/FPM/Viton PN16*
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
VITON®
| Model: | Straub grip Fire-Fence | Material body: | Stainless steel 1.4404/316L |
| Connection: | Clamping grip ring | Material sealing: | FKM-FPM-Viton |
| Temperature: | -20 °C - +180 °C | Material bars: | Stainless steel 1.4404 / 316L |
| Pressure marine*: | 16 bars* check PDF | Material bolts: | Stainless steel A4-80 |
| Pressure industrial**: | Check PDF or order list | Use: | Steel &Stainless steel pipe |
| Made in: | Switzerland | Brand: | STRAUB Original |
| Test pressure = PN (Industry** ) x 1.5 (for example industry, water supply etc.) |
| PN (Marine/Schipbuilding* ) = nominal pressure, includes four times safety factor |
| The pressure values are valid on radial rigid carbon steel pipes under static loads |
Datasheet (PDF)
| SKU | 5512FW5V0000 |
|---|
| Coupling type | Fire-resistant |
|---|---|
| Body material | Stainless steel 1.4404-316L |
| Seat | FKM-FPM-Viton® |
