  • STRAUB Non pull-resistant FLEX 1 coupling Stainless steel W5-316L EPDM
download datasheet

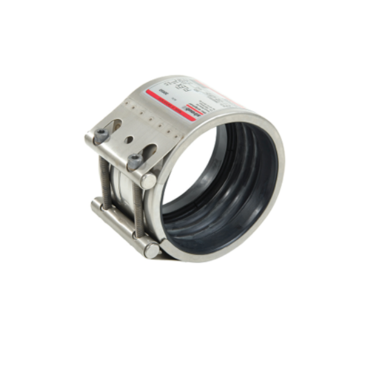

STRAUB Non pull-resistant FLEX 1 coupling Stainless steel W5-316L EPDM

Model: Straub grip Material body: Stainless steel 1.4404/316L
Connection: Clamping Non-pull resistant Material sealing: EPDM
Temperature: -20 °C - +100 °C Material bars: Stainless steel 1.4404 / 316L
Pressure marine*: 16 bars* check PDF Material bolts: Stainless steel A4-80
Pressure industrial**: Check PDF or order list Use: Steel &Stainless steel pipe
Made in: Switzerland Brand: STRAUB Original
PN industry = working pressure considering the application loads
Test pressure = PN (Industry** ) x 1.5 (for example industry, water supply etc.)
PN (Marine/Schipbuilding* ) = nominal pressure, includes four times safety factor (e.g. shipbuilding)

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: 5524FW5E0000
Body material Stainless steel 1.4404-316L
Seat EPDM
View products
Grouped product items
SKU Product Name DN Length Ø D € / st Qty
5524FW5E0048 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 48.3 48,3 75 47.0 - 50.0
€98.54
- +
5524FW5E0054 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 54.0 54 75 52.5 - 55.5
€98.70
- +
5524FW5E0057 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 57.0 57 75 55.5 - 58.5
€99.75
- +
5524FW5E0060 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 60.3 60,3 75 59.0 - 63.0
€100.80
- +
5524FW5E0070 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 70.0 70 94 69.5 - 71.0
€103.95
- +
5524FW5E0073 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 73.0 73 94 71.5 - 75.0
€104.48
- +
5524FW5E0076 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 76.1 76,1 94 74.5 - 77.5
€110.25
- +
5524FW5E0080 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 80.0 80 94 79.5 - 81.5
€112.35
- +
5524FW5E0084 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 84.0 84 94 82.5 - 85.5
€114.45
- +
5524FW5E0088 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 88.9 88,9 94 87.5 - 90.5
€115.50
- +
5524FW5E0100 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 100.6 100,6 94 99.0 - 102.5
€116.55
- +
5524FW5E0101 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN25** Ø 101.6 101,6 94 100.0 - 103.5
€118.65
- +
5524FW5E0103 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 104.0 104 94 102.5 - 105.5
€119.70
- +
5524FW5E0104 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 104.8 104,8 94 103.0 - 106.5
€121.80
- +
5524FW5E0108 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 108.0 108 94 106.5 - 110.0
€123.90
- +
5524FW5E0114 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 114.3 114,3 94 112.5 - 116.0
€122.85
- +
5524FW5E0127 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 127.0 127 107 125.0 - 129.0
€151.20
- +
5524FW5E0129 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 129.0 129 107 127.0 - 131.0
€154.35
- +
5524FW5E0130 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN20** Ø 130.2 130,2 107 128.5 - 132.0
€155.40
- +
5524FW5E0133 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN16** Ø 133.0 133 107 131.0 - 135.0
€156.45
- +
5524FW5E0139 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN16** Ø 139.7 139,7 107 138.0 - 141.5
€158.55
- +
5524FW5E0141 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN16** Ø 141.3 141,3 107 139.5 - 143.0
€160.65
- +
5524FW5E0154 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN16** Ø 154.0 154 107 152.0 - 156.0
€166.95
- +
5524FW5E0159 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN16** Ø 159.0 159 107 157.0 - 161.0
€170.10
- +
5524FW5E0168 STRAUB Non pull-resistant FLEX 1 coupling St.St. W5-316L EPDM PN16* - PN16** Ø 168.3 168,3 107 166.0 - 170.5
€173.25
- +
