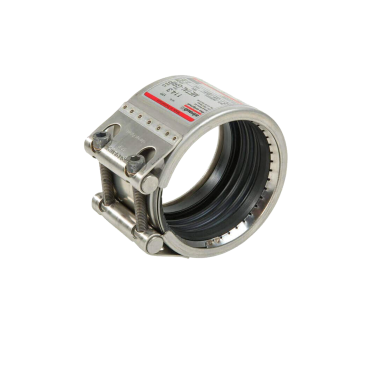

STRAUB METAL GRIP pipe coupling Stainless steel 1.4404-316L NBR

Model: Straub METAL grip Material body: Stainless steel 1.4404/316L
Connection: Clamping grip ring Material sealing: NBR
Temperature: -20 °C - +80 °C Material bars: Stainless steel 1.4404 / 316L
Pressure marine*: 16 bars* check PDF Material bolts: Stainless steel A4-80
Pressure industrial**: Check PDF or order list Use: Steel & Stainless steel pipe
Made in: Switzerland Brand: STRAUB Original
Test pressure = PN (Industry** ) x 1.5 (for example industry, water supply etc.)
PN (Marine/Schipbuilding* ) = nominal pressure, includes four times safety factor
The pressure values are valid on radial rigid carbon steel pipes under static loads
STRAUB METAL GRIP

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: 5514GW5N0000
Body material Stainless steel 1.4404-316L
Seat NBR
View products
Grouped product items
SKU Product Name DN Length Ø D € / st Qty
5514GW5N0030 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN67** 29.5 - 30.5 Ø 30.0 30.0 46 29.5 - 30.5
€167.13
- +
5514GW5N0033 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN62** 33.2 - 34.2 Ø 33.7 33.7 46 33.2 - 34.2
€167.13
- +
5514GW5N0038 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN58** 37.5 - 38.5 Ø 38.0 38.0 61 37.5 - 38.5
€167.13
- +
5514GW5N0042 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN53** 41.9 - 42.9 Ø 42.4 42.4 61 41.9 - 42.9
€168.21
- +
5514GW5N0044 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN48** 44.0 - 45.0 Ø 44.5 44.5 61 44.0 - 45.0
€168.21
- +
5514GW5N0048 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN44** 47.8 - 48.8 Ø 48.3 48.3 61 47.8 - 48.8
€168.21
- +
5514GW5N0054 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN39** 53.5 - 54.5 Ø 54.0 54.0 77 53.5 - 54.5
€169.20
- +
5514GW5N0057 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN37** 56.4 - 57.6 Ø 57.0 57.0 77 56.4 - 57.6
€173.34
- +
5514GW5N0060 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN37** 59.7 - 60.9 Ø 60.3 60.3 77 59.7 - 60.9
€175.32
- +
5514GW5N0063 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN37** 62.9 - 64.1 Ø 63.5 63.5 77 62.9 - 64.1
€179.46
- +
5514GW5N0073 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN56** 72.2 - 73.8 Ø 73.0 73.0 94 72.2 - 73.8
€200.97
- +
5514GW5N0076 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN56** 75.3 - 76.9 Ø 76.1 76.1 94 75.3 - 76.9
€202.05
- +
5514GW5N0084 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN45** 83.2 - 84.8 Ø 84.0 84.0 94 83.2 - 84.8
€218.43
- +
5514GW5N0088 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN41** 88.0 - 89.8 Ø 88.9 88.9 94 88.0 - 89.8
€218.43
- +
5514GW5N0104 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN37** 103.0 - 105.0 Ø 104.0 104.0 94 103.0 - 105.0
€239.94
- +
5514GW5N0108 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN35** 106.9 - 109.1 Ø 108.0 108.0 94 106.9 - 109.1
€239.94
- +
5514GW5N0114 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN34** 113.2 - 115.4 Ø 114.3 114.3 94 113.2 - 115.4
€249.21
- +
5514GW5N0129 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN33** 127.7 - 130.3 Ø 129.0 129.0 108 127.7 - 130.3
€356.85
- +
5514GW5N0133 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN33** 131.7 - 134.3 Ø 133.0 133.0 108 131.7 - 134.3
€356.85
- +
5514GW5N0154 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN32** 152.5 - 155.5 Ø 154.0 154.0 109 152.5 - 155.5
€425.61
- +
5514GW5N0139 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN32** 138.3 - 141.1 Ø 139.7 139.7 109 138.3 - 141.1
€394.83
- +
5514GW5N0159 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN31** 157.4 - 160.6 Ø 159.0 159.0 109 157.4 - 160.6
€425.61
- +
5514GW5N0168 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN29** 166.6 - 170.0 Ø 168.3 168.3 109 166.6 - 170.0
€458.37
- +
5514GW5N0219 STRAUB METAL GRIP St.St W5-316L NBR PN16* - PN26** 216.9 - 221.3 Ø 219.1 219.1 150 216.9 - 221.3
€815.22
- +
