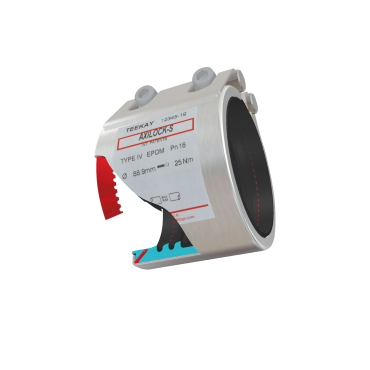

Teekay Axilock-(S) Type-IV Grip pipe coupling AISI 316L/1.4404 EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Straub grip | Material body: | Stainless steel 1.4404/316L |
| Connection: | Clamping Non-pull resistant | Material sealing: | NBR |
| Temperature: | -20 °C - +80 °C | Material bars: | Stainless steel 1.4404 / 316L |
| Pressure marine*: | 16 bars* check PDF | Material bolts: | Stainless steel A4-80 |
| Pressure industrial**: | Check PDF or order list | Use: | Steel &Stainless steel pipe |
| Made in: | Switzerland | Brand: | STRAUB Original |
| PN industry = working pressure considering the application loads |
| Test pressure = PN (Industry** ) x 1.5 (for example industry, water supply etc.) |
| PN (Marine/Schipbuilding* ) = nominal pressure, includes four times safety factor (e.g. shipbuilding) |
| SKU | AXLS4E00000 |
|---|
| Coupling type | Grip pull-resistant |
|---|---|
| Body material | Stainless steel 1.4404-316L |
| Seat | EPDM |
