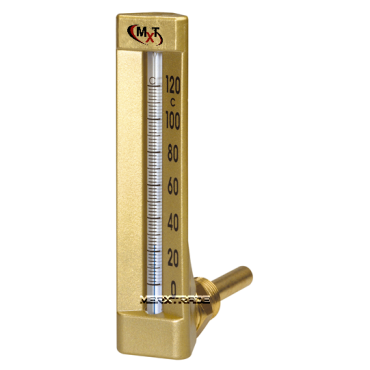

Thermometer aluminium angle BSPP 1/2"

Model:	Angle 90°	Material body:	Aluminium
Connection:	Thread BSPP	Material glass:	Prismatic glass
Pressure:	Max 16 bar	Material plunger:	Brass (up to 200°)
Temperature:	-30°C / 300°C	Plunger size:	Ø10 mm
Note:	Anti blow-out stem	Note:	Accuracy class2.5%

Not for viscous or crystallizing liquid

Designing according to DIN 16189 & DIN 16190

Non-corrosive gases & liquids

DIRECTIVE 2014/68/EU: Products excluded from directive ( article 4,§ 3 )

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	MXT-H1670000
Body material	Aluminium-Forced

View products

Grouped product items
SKU	Product Name	DN	Length	IMPA	€ / st	Qty
MXT-H1675001	Thermometer aluminium angle H=150mm BSPP 1/2" plunger 63mm 0°C/+120°C	1/2"	150	IMPA 652044	€30.54	- +
MXT-H1675002	Thermometer aluminium angle H=150mm BSPP 1/2" plunger 63mm -30°C/+50°C	1/2"	150	IMPA 652041	€30.54	- +
MXT-H1676001	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 63mm 0°C/+120°C	1/2"	200	IMPA 652004	€35.70	- +
MXT-H1676002	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 63mm -30°C/+50°C	1/2"	200	IMPA 652001	€35.70	- +
MXT-H1676003	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 63mm 0°C/+200°C	1/2"	200	IMPA 652010	€35.70	- +
MXT-H1676004	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 63mm 0°C/+300°C	1/2"	200	IMPA 652010	€90.00	- +
MXT-H1677001	Thermometer aluminium angle H=150mm BSPP 1/2" plunger 100mm 0°C/+120°C	1/2"	150	IMPA 652045	€33.59	- +
MXT-H1677002	Thermometer aluminium angle H=150mm BSPP 1/2" plunger 100mm -30°C/+50°C	1/2"	150	IMPA 652042	€33.59	- +
MXT-H1678001	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 100mm 0°C/+120°C	1/2"	200	IMPA 652005	€37.56	- +
MXT-H1678002	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 100mm -30°C/+50°C	1/2"	200	IMPA 652002	€37.56	- +
MXT-H1678003	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 100mm 0°C/+200°C	1/2"	200	IMPA 652011	€37.56	- +
MXT-H1678004	Thermometer aluminium angle H=200mm BSPP 1/2" plunger 100mm 0°C/+300°C	1/2"	200	IMPA 652011	€30.03	- +

IMPA 651901 IMPA 651902 IMPA 651903 IMPA 651904 IMPA 651905 IMPA 651906 IMPA 651907 IMPA 651908 IMPA 651909 IMPA 651910 IMPA 651911 IMPA 651912 IMPA 651913 IMPA 651914 IMPA 651915 IMPA 651916 IMPA 651917 IMPA 651918 IMPA 651919 IMPA 651920 IMPA 651921 IMPA 651922 IMPA 651923 IMPA 651924 IMPA 651925 IMPA 651926 IMPA 651927 IMPA 651928 IMPA 651929 IMPA 651930 IMPA 651931 IMPA 651932 IMPA 651933 IMPA 651934 IMPA 651935 IMPA 651936 IMPA 651937 IMPA 651938 IMPA 651939 IMPA 651940 IMPA 651941 IMPA 651942 IMPA 651943 IMPA 651944 IMPA 651945 IMPA 651946 IMPA 651947 IMPA 651948 IMPA 651949 IMPA 651950 IMPA 651951 IMPA 651952 IMPA 651953 IMPA 651954 IMPA 651955 IMPA 651956 IMPA 651957 IMPA 651958 IMPA 651959 IMPA 651960 IMPA 651961 IMPA 651962 IMPA 651963 IMPA 651964 IMPA 651981 IMPA 651982 IMPA 651983 IMPA 651984 IMPA 651985 IMPA 651986 IMPA 651987 IMPA 651988 IMPA 651989 IMPA 651990 IMPA 652001 IMPA 652002 IMPA 652003 IMPA 652004 IMPA 652005 IMPA 652006 IMPA 652007 IMPA 652008 IMPA 652009 IMPA 652010 IMPA 652011 IMPA 652012 IMPA 652013 IMPA 652014 IMPA 652015 IMPA 652016 IMPA 652017 IMPA 652018 IMPA 652019 IMPA 652020 IMPA 652021 IMPA 652022 IMPA 652023 IMPA 652024 IMPA 652025 IMPA 652026 IMPA 652027 IMPA 652028 IMPA 652029 IMPA 652030 IMPA 652031 IMPA 652032 IMPA 652033 IMPA 652034 IMPA 652035 IMPA 652036 IMPA 652037 IMPA 652038 IMPA 652039 IMPA 652040 IMPA 652041 IMPA 652042 IMPA 652043 IMPA 652044 IMPA 652045 IMPA 652046 IMPA 652047 IMPA 652048 IMPA 652049 IMPA 652050 IMPA 652051 IMPA 652052 IMPA 652053 IMPA 652054 IMPA 652055 IMPA 652056 IMPA 652057 IMPA 652058 IMPA 652059 IMPA 652060 IMPA 652061 IMPA 652062 IMPA 652063 IMPA 652064 IMPA 652081 IMPA 652082 IMPA 652083 IMPA 652084 IMPA 652085 IMPA 652086 IMPA 652087 IMPA 652088 IMPA 652089 IMPA 652090 IMPA 652101 IMPA 652102 IMPA 652103 IMPA 652104 IMPA 652105 IMPA 652106 IMPA 652107 IMPA 652108 IMPA 652109 IMPA 652110 IMPA 652111 IMPA 652112 IMPA 652113 IMPA 652114 IMPA 652115 IMPA 652116 IMPA 652117 IMPA 652118 IMPA 652119 IMPA 652120 IMPA 652131 IMPA 652132 IMPA 652133 IMPA 652134 IMPA 652135 IMPA 652136 IMPA 652137 IMPA 652138 IMPA 652139 IMPA 652140 IMPA 652141 IMPA 652142 IMPA 652143 IMPA 652144 IMPA 652145 IMPA 652146 IMPA 652147 IMPA 652148 IMPA 652149 IMPA 652150 type 271B type 291B type 174B

Thermometer aluminium angle BSPP 1/2"
