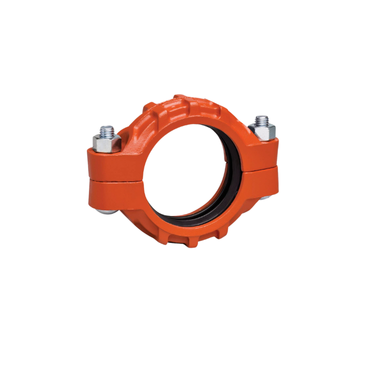

Victaulic QuickVic flexible coupling Style 77 / EPDM
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Flexible coupling | Material: | Ductile iron ASTM A536 |
| Connection: | Clamping | Material seat: | EPDM |
| Temperature: | -34 °C to +110 °C | Material bolts: | Carbon steel |
| Pressure: | Full vacuum up to 1000 psi | Material coating: | Orange enamel |
| Use: Shipbuilding, marine, industry, agriculture, heating systems |
Datasheet (PDF)
| SKU | 993486E000 |
|---|
| Body material | Ductile iron |
|---|---|
| Seat | EPDM |
