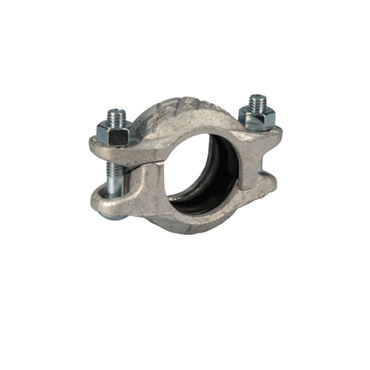

Victaulic rigid coupling style 07 galvanised EPDM

Model:	Rigid coupling	Material body:	Ductile iron ASTM A536
Connection:	Clamping	Material seat:	EPDM
Temperature:	–30ºF to +230ºF/–34ºC to +110ºC	Material bolts:	Carbon steel
Pressure:	Full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa. (see data)	Coating:	Galvanised ASTM A153

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

Grouped product items
SKU	Product Name	Ø D	€ / st	Qty
993G07E033	Victaulic rigid coupling style 07 galvanised EPDM 1" - 33.7	1"	€32.69	- +
993G07E042	Victaulic rigid coupling style 07 galvanised EPDM 1.1/4" - 42.4	1.1/4"	€32.63	- +
993G07E048	Victaulic rigid coupling style 07 galvanised EPDM 1.1/2" - 48.3	1.1/2"	€32.91	- +
993G07E060	Victaulic rigid coupling style 07 galvanised EPDM 2" - 60.3	2"	€44.04	- +
993G07E076	Victaulic rigid coupling style 07 galvanised EPDM 2.1/2" - 76.1	2.1/2"	€51.56	- +
993G07E088	Victaulic rigid coupling style 07 galvanised EPDM 3"- 88.9	3"	€60.64	- +
993G07E114	Victaulic rigid coupling style 07 galvanised EPDM 4" - 114.3	4"	€86.17	- +
993G07E139	Victaulic rigid coupling style 07 galvanised EPDM 5" - 139.7	5"	€112.13	- +
993G07E168	Victaulic rigid coupling style 07 galvanised EPDM 6" - 168.3	6"	€148.88	- +
993G07E219	Victaulic rigid coupling style 07 galvanised EPDM 8" - 219.1	8"	€212.80	- +
993G07E273	Victaulic rigid coupling style 07 galvanised EPDM 10" - 273.0	10"	€347.12	- +
993G07E323	Victaulic rigid coupling style 07 galvanised EPDM 12" - 323.9	12"	€360.40	- +
