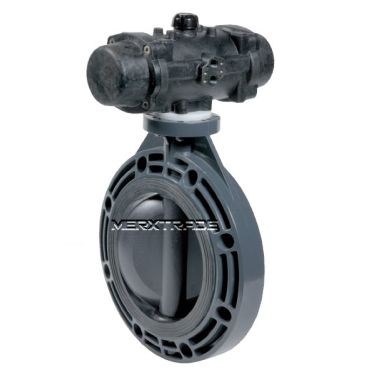

PVC-U - Vlinderklep + pneumatische aandrijving DUBBEL of ENKEL werkend

PVC-U body
Reinforced PP butterfly - EPDM seat - Stainless steel stem
Between flanges PN10
Anti-UV protection
PS: 10 bar - TS: 0°C/+55°C.
Max. ΔP: 10 bar.

Pneumatic actuator PP Reinforced fiberglass polyamide body
Double Acting DN40 up to DN200 (PP)
Spring Return DN40 up to DN125 (PPS)

Pneumatic actuator AP Anodized aluminum body
Double Acting DN250 up to DN300 (AP)
Spring Return DN150 up to DN300 (APS)

De getoonde afbeeldingen kunnen afwijken van de werkelijke uitvoering. Technische data & prijzen kunnen zonder voorafgaande kennisgeving worden gewijzigd.

SKU:	MXT-1215300000
Materiaal huis	PVC-U
Materiaal klep/ binnenwerk	PP-GF
Afdichting	EPDM

Ga naar producten

Gegroepeerde productitems
Art.nr.	Product Naam	DN	Length	€ / st	Aantal
MXT-1215300040	PVC-U - Butterfly valve + pneumatic actuator PP10S SPRING RETURN-EPDM-PN10-DN40	40	34	€ 932,25	- +
MXT-1215300050	PVC-U - Butterfly valve + pneumatic actuator PP10S SPRING RETURN-EPDM-PN10-DN50	50	44	€ 997,92	- +
MXT-1215300065	PVC-U - Butterfly valve + pneumatic actuator PP10S SPRING RETURN-EPDM-PN10-DN65	65	46	€ 997,77	- +
MXT-1215300080	PVC-U - Butterfly valve + pneumatic actuator PP10S SPRING RETURN-EPDM-PN10-DN80	80	57.	€ 1.162,56	- +
MXT-1215300100	PVC-U - Butterfly valve + pneumatic actuator PP20S SPRING RETURN-EPDM-PN10-DN100	100	60	€ 1.476,62	- +
MXT-1215300125	PVC-U - Butterfly valve + pneumatic actuator PP20S SPRING RETURN-EPDM-PN10-DN125	125	66	€ 1.335,98	- +
MXT-1215300150	PVC-U - Butterfly valve + pneumatic actuator APS115 SPRING RETURN-EPDM-PN10-DN150	150	72	€ 1.512,00	- +
MXT-1215300200	PVC-U - Butterfly valve + pneumatic actuator APS115 SPRING RETURN-EPDM-PN10-DN200	200	82	€ 1.818,08	- +
MXT-1215300250	PVC-U - Butterfly valve + pneumatic actuator APS160 SPRING RETURN-EPDM-PN10-DN250	250	92	€ 3.901,80	- +
MXT-1215300300	PVC-U - Butterfly valve + pneumatic actuator APS160 SPRING RETURN-EPDM-PN10-DN300	300	98	€ 4.013,10	- +
MXT-1215310040	PVC-U - Butterfly valve + pneumatic actuator PP00 DOUBLE.ACT-EPDM-PN10-DN40	40	34	€ 657,15	- +
MXT-1215310050	PVC-U - Butterfly valve + pneumatic actuator PP00 DOUBLE.ACT-EPDM-PN10-DN50	50	44	€ 940,13	- +
MXT-1215310065	PVC-U - Butterfly valve + pneumatic actuator PP00 DOUBLE.ACT-EPDM-PN10-DN65	65	46	€ 746,17	- +
MXT-1215310080	PVC-U - Butterfly valve + pneumatic actuator PP10 DOUBLE.ACT-EPDM-PN10-DN80	80	57.	€ 970,24	- +
MXT-1215310100	PVC-U - Butterfly valve + pneumatic actuator PP10 DOUBLE.ACT-EPDM-PN10-DN100	100	60	€ 1.035,62	- +
MXT-1215310125	PVC-U - Butterfly valve + pneumatic actuator PP20 DOUBLE.ACT-EPDM-PN10-DN125	125	66	€ 1.159,94	- +
MXT-1215310150	PVC-U - Butterfly valve + pneumatic actuator PP20 DOUBLE.ACT-EPDM-PN10-DN150	150	72	€ 1.255,28	- +
MXT-1215310200	PVC-U - Butterfly valve + pneumatic actuator PP20 DOUBLE.ACT-EPDM--PN10-DN200	200	82	€ 1.619,69	- +
MXT-1215310250	PVC-U - Butterfly valve + pneumatic actuator AP115 DOUBLE.ACT-EPDM-PN10-DN250	250	92	€ 2.870,70	- +
MXT-1215310300	PVC-U - Butterfly valve + pneumatic actuator AP125 DOUBLE.ACT-EPDM-PN10-DN300	300	98	€ 3.129,00	- +

PVC-U - Vlinderklep + pneumatische aandrijving DUBBEL of ENKEL werkend
