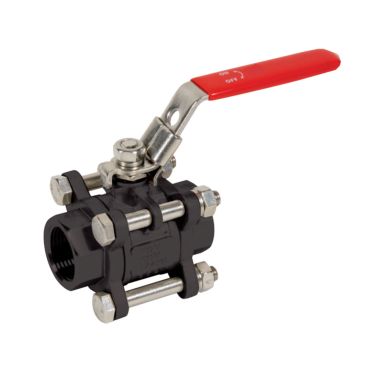

Ball valve 3piece body carbon steel/inox/PTFE-Butt weld
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
Butt weld
PTFE
97/23/EC directive N° 0035 - Risk category II - RTFE seats - Full bore - Anti-blowout stem - Locking device -Max. pressure: 63 bar up to 2", 40 bar above - Temperature range: -20°C/+180°C - Not for compressed air.
Datasheet (PDF)
| SKU | MXT-7546797 |
|---|
| Body material | Carbon steel-A216WCB |
|---|---|
| Disc / Ball / Wedge | 304 |
| Seat | RTFE |
