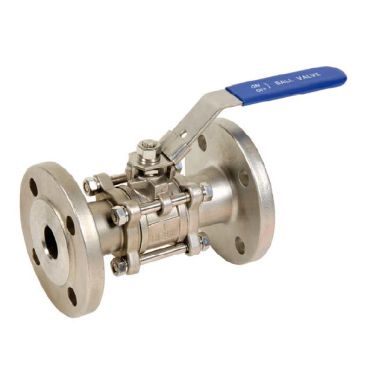

Ball valve 3piece body stainless.steel/inox/PTFE flanged PN40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 3 pieces full bore | Material body: | Stainless st ASTM A351 CF8M |
| Connection: | Flanges PN40 | Material ball: | Stainless st ASTM A351 CF8M |
| Temperature range: | - 20°C up to + 180°C | Material seat: | PTFE filled with 15% glass fiber |
| Max pressure: | 40 bars | Length: | DIN 3202 F1 |
| Type: | Anti blow-out stem | Actuating: | Handle with locking |
Datasheet (PDF)
| SKU | MXT-7239731 |
|---|
| Body material | Stainless.steel-CF8M |
|---|---|
| Disc / Ball / Wedge | CF8M |
| Seat | PTFE |
