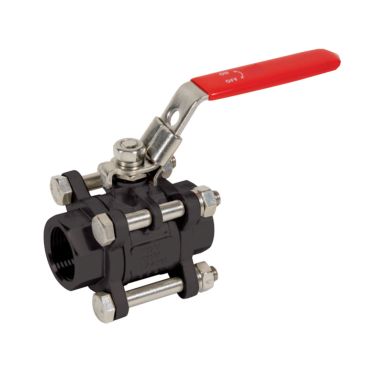

Ball valve 3piece body carbon steel/inox/PTFE-NPT
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NPT
PTFE
-97/23/EC Directive N°0035 - Risk category III / module H
-RTFE seats
-Full bore
-Anti-blowout stem
-Locking device
-TS: -20°C/+180°C
-Compressed air: 20 bar max. up to 1", 16 bar above.
-Threaded NPT according to ANSI B.20.1
-Max Press : 63 bars up to DN20, 40 bars from DN25 to 50
-Black oxide finish for carbon steel valves
Datasheet (PDF)
| SKU | MXT-7546796 NPT |
|---|
| Body material | Carbon steel-A216WCB |
|---|---|
| Disc / Ball / Wedge | 304 |
| Seat | RTFE |
