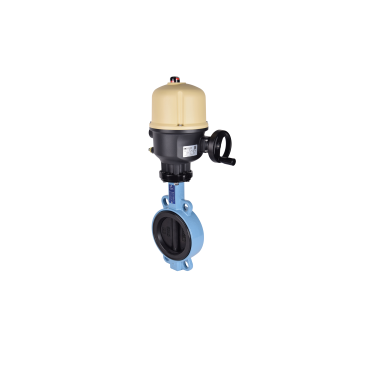

Butterfly valve wafer electric TTV 230V AC IP68 GGG50/RVS/GGG50/EPDM PN10/16
Butterfly valve wafer electric TTV 230V AC IP68 GGG50/RVS/GGG50/EPDM PN10/16
| Model: |
Wafer |
Material body: |
Ductile iron GGG50 |
| Connection: |
PN10/16 ANSI 150# |
Material disc: |
St.St. CF8M <DN100 > ductile coat
|
| Pressure: |
16 bar |
Material seat: |
EPDM |
| Temperature: |
-10°C-110°C |
Operation: |
Electric on/off 230V AC IP68
|
Electrical Actuator standard on/off execution. Brand: Bernard
|
| Casing + lid: |
Aluminium IP68 seal |
Motor protection: |
Thermal switch |
| Gear box: |
Treaded steel pinions |
Limit switches: |
2 adjustable switches |
| Anti-condensation: |
Integrated |
Auxiliary switches: |
2 adjustable dry switches |
| Supply voltage: |
230volt AC |
Manual control: |
By handwheel |
Note: Disc up-to DN100 stainless steel above Ductile iron with coating.
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-1150AQ5000 |
| Body material |
Ductile iron |
| Disc / Ball / Wedge |
Stainless steel-CF8M-316 |
| Seat |
EPDM |
