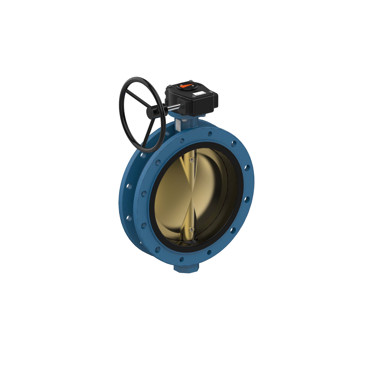

Butterfly valve double flange U-type gearbox GGG40-Alumiumbronze-NBR JIS 5K

Model: Double flange U-type Material body: Ductile iron GGG40
Connection: Flanged 5K JIS Material Disc: Aluminium bronze BS 1400 AB2
Pressure: 10bar Material seat: NBR
Temperature: -15°C +80°C Operation: Gearbox
Use: Maritime systems, seawater, ballast systems, engine rooms, lens systems, water systems

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-F7480K50000
Body material Ductile iron GGG40.
Disc / Ball / Wedge Aluminium-Bronze
Seat NBR
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-F7480K50050 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN50 50 45
€246.00
- +
MXT-F7480K50065 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN65 65 45
€293.00
- +
MXT-F7480K50080 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN80 80 60
€279.00
- +
MXT-F7480K50100 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN100 100 60
€354.00
- +
MXT-F7480K50125 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN125 125 100
€425.00
- +
MXT-F7480K50150 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN150 150 100
€554.00
- +
MXT-F7480K50200 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN200 200 100
€840.00
- +
MXT-F7480K50250 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN250 250 110
€1,316.00
- +
MXT-F7480K50300 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN300 300 110
€1,734.00
- +
MXT-F7480K50350 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN350 350 120
€2,697.00
- +
MXT-F7480K50400 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN400 400 130
€4,235.00
- +
MXT-F7480K50450 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN450 450 150
€4,385.00
- +
MXT-F7480K50500 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN500 500 160
€5,390.00
- +
MXT-F7480K50550 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN550 550 160
€6,813.00
- +
MXT-F7480K50600 Butterfly valve double flange U-type gearbox GGG40-Alu.br-NBR 5K-DN600 600 170
€8,635.00
- +
