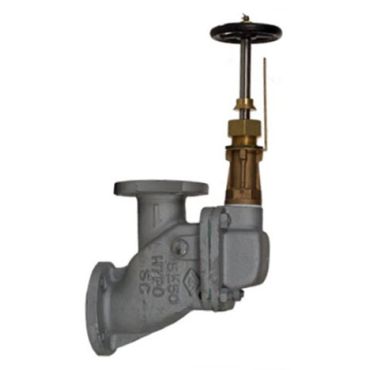

Storm valve-JIS-5K-Cast.steel-Angle-inclu. Shut.Off.Device

Cast.Steel Storm valve-JIS-Including Shutt off device
Angle mounting
Flap in bronze
Flanges acc. to JIS 5K

Valves can be tested for certificate by other class societies.

 IMPA code at column : models, materials and sizes can be different and should be checked by the customer / visitor

 Check for  availability



The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-113060201
Body material Cast.Steel-SC 49
Disc / Ball / Wedge Bronze- JIS H 5111-BC6
Grouped product items
SKU Product Name DN Length IMPA € / st Qty
MXT-1130602050 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-050 5K-50 170x90 IMPA 754251
€224.00
- +
MXT-1130602065 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-065 5K-65 200x110 IMPA 754252
€365.00
- +
MXT-1130602080 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-080 5K-80 220x120 IMPA 754253
€455.00
- +
MXT-1130602100 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-100 5K-100 250x130 IMPA 754254
€640.00
- +
MXT-1130602125 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-125 5K-125 270x150 IMPA 754255
€933.00
- +
MXT-1130602150 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-150 5K-150 310x170 IMPA 754256
€1,252.00
- +
MXT-1130602200 Storm valve-JIS-Cast.steel-Angle-inclu. Shut.Off.Device-5K-200 5K-200 400 x 190 IMPA 754257
€1,364.00
- +
