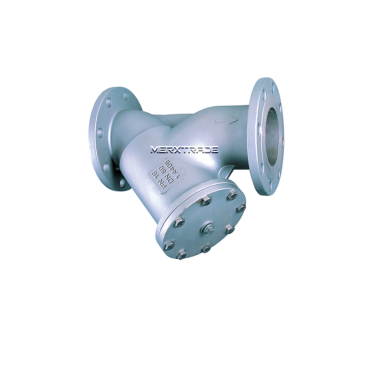

Strainer Y. type-flanged-Stainless.steel
- Stainless.steel CF8M(316) body - F316 screen
- PN16 Flanges R.F. from DN 15 to DN 150
- Min Temperature Ts : - 20°C
- Max Temperature Ts :+ 180°C ( see graph)
- Max Pressure Ps : 16 bars ( see graph)
- Removable stainless steel filter
- Horizontal or vertical position with descendant fluid
(respect the flow direction indicated by the arrow )
- Perforation see data sheet for more info.
- Bolted bonnet with draining cap threaded BSP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-1546240 |
| Body material | Stainless steel-ASTM-A351-CF8M-316 |
| Filter material | SS316 |
