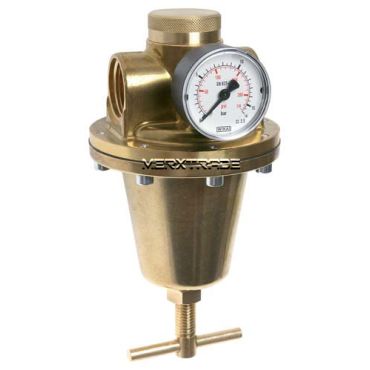

Water pressure reducer inlet 40 bar Brass-NBR
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
Design: non-reversible no secondary venting
Materials: Body: brass, diaphragm and seals: NBR
Temperature range: 0 ° C to max. + 90 ° C
Input pressure: max. 40 bar
Pressure gauge connection: G 1/4 " Including pressure gauge
Media: Water
Outlet range: 0,5 - 6 bar 0,5 - 10 bar 0,5 - 16 bar 0,5 - 25 bar
Datasheet (PDF)
| SKU | MXT-1420030 |
|---|
| Body material | Brass |
|---|---|
| Disc / Ball / Wedge | Brass |
| Seat | NBR |
